07 Applied Hydrogeology
07-10 Geothermal Energy
Heat transport, heat flow, geothermal use for heating/cooling.
Contents
| Index | Description |
|---|---|
| 07-10-001 | 3D Heat transport with convection, conduction, and dispersion |
07-10-0013D Heat transport with convection, conduction, and dispersion
| Type: Streamlit app | Time: 15–30 minutes |

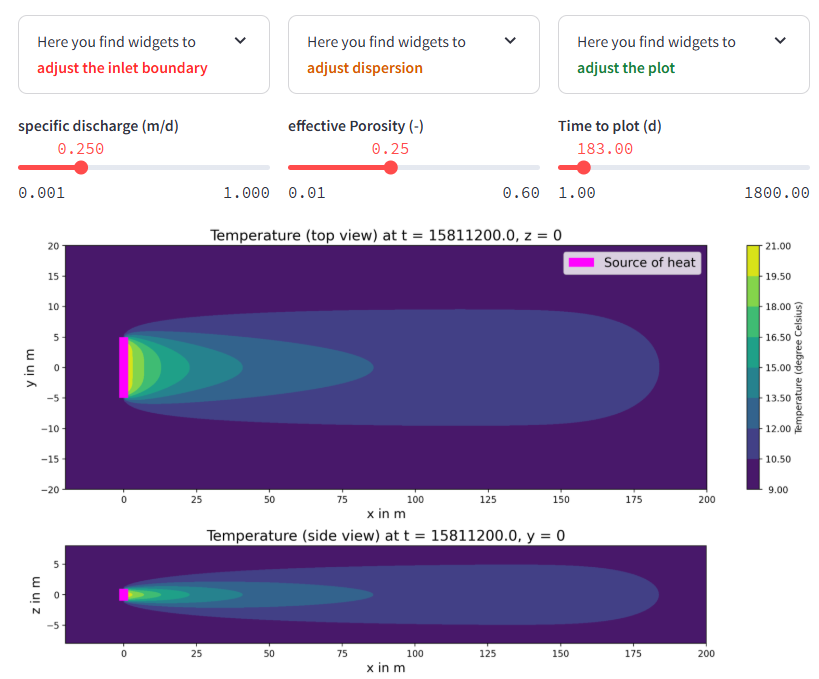

Figure 1: Visualization of the heat transport (Screenshot)
This interactive application illustrates three-dimensional heat transport in a saturated porous medium under steady groundwater flow, combining convection (advection), conduction, and hydrodynamic dispersion. A continuous heat input is applied at a finite source, and the resulting temperature distribution is evaluated from an analytical solution.
Users can explore how specific discharge and effective porosity control the average groundwater velocity, how longitudinal and transverse dispersivities shape heat transport, and how source geometry (width and thickness) influences the extent of warming.
Results are visualized as plan-view (x–y) temperature fields for a selectable depth slice and as cross-sections (x–z) for a selectable lateral position, shown either as filled contours or isolines. Optional settings allow restricting spreading to downward directions to mimic density-driven tendencies or simplified conceptual assumptions.
| Detail | Value |
|---|---|
| URL | 3d-heat-transport.streamlit… · open app |
| Author(s) | Thomas Reimann (TU Dresden) |
| Keywords | Heat transport, Geothermal energy, transport, 3D |
| Fit For | self learning, online teaching, classroom teaching |
| Prerequisites | Basic hydrogeology, basic knowledge of transport, hydrogeological parameters |
Streamlit app details
| Detail | Value |
|---|---|
| Interactive plots | 2 interactive plot(s) |
